EPT-TLC2326P-Lora – LoRaWAN + WiFi Ultrasonic Water Level Sensor (Tuya-Compatible)
60 $
The EPT-TLC2326P-Lora is a WiFi + LoRa-enabled smart ultrasonic water level sensor. Tuya-compatible, non-contact, IP-rated, and ideal for tank monitoring.
In stock
📡 EPT-TLC2326P-Lora – Dual Wireless Smart Water Level Sensor
The EPT-TLC2326P-Lora is a highly advanced smart water level monitor that supports both WiFi (2.4 GHz) and LoRaWAN long-range communication, making it ideal for residential, agricultural, or industrial use. With non-contact ultrasonic sensing, a rugged waterproof design, and Tuya Smart compatibility, it allows for intelligent monitoring and remote management of tank levels with minimal installation effort.
🔍 Key Features
-
📶 Dual Connectivity – Supports WiFi (2.4GHz) for smart home integration and LoRaWAN for long-range, low-power outdoor monitoring
-
📏 Ultrasonic Sensing – Measures tank level via sound wave reflection, avoiding contact with liquids
-

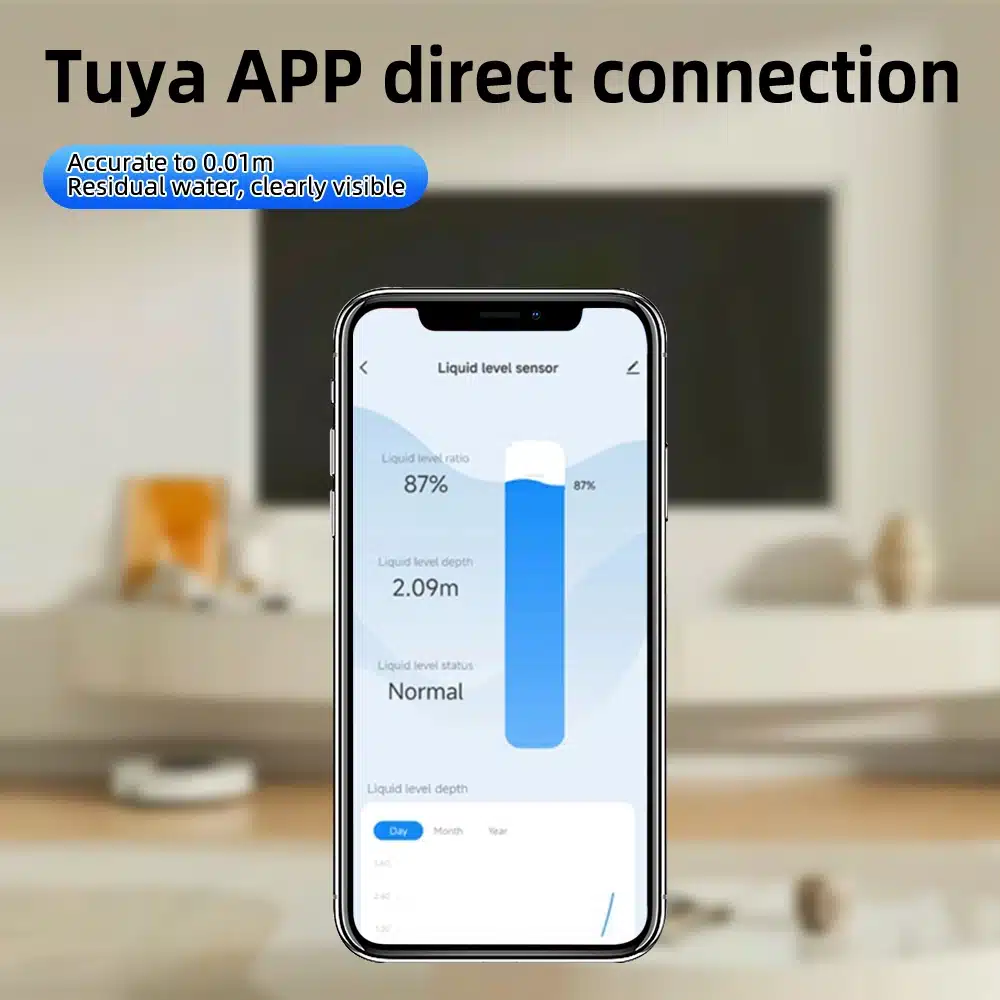

📱 Tuya Smart Ecosystem – Easily connects to the Tuya or Smart Life app for real-time monitoring, history tracking, and device automation
-
🔋 Low Power Mode – Ideal for solar-powered setups, updates readings every 5 minutes
-
💧 IP-Rated – Designed for rugged outdoor or indoor environments
-
⚙️ Smart Automation – Trigger scenes such as auto-pump activation when level drops

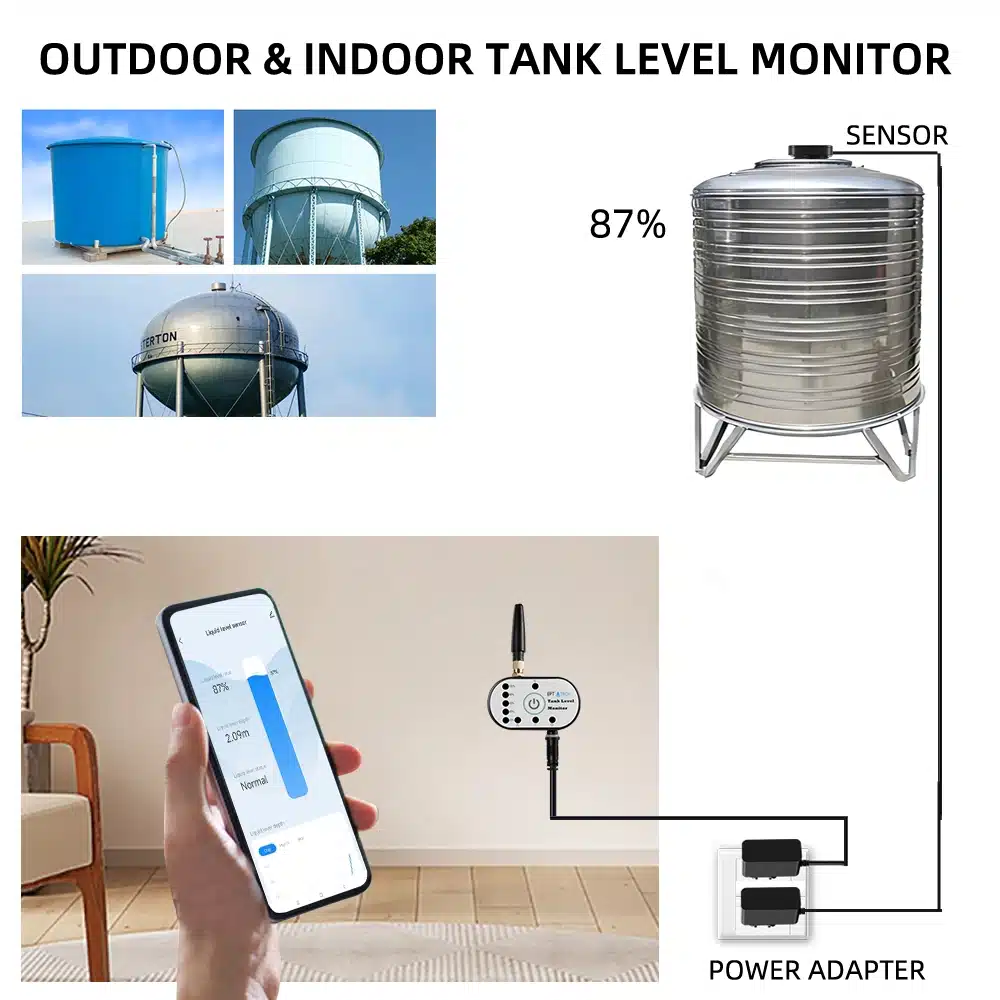

🧠 Use Cases
-
Rooftop water tanks
-
Agricultural irrigation tanks
-
Fuel and chemical storage
-
Industrial cisterns
-
Smart home liquid level management
📐 Technical Specifications
| Feature | Value |
|---|---|
| Measurement Range | 10 cm – 2.9 m |
| Accuracy | ±(1% + 10 mm) |
| Power Supply | 5V DC (or solar-compatible) |
| Communication | WiFi 2.4GHz + LoRaWAN (410.125–490.125 MHz) |
| Sensor Frequency | 40 kHz |
| Operating Temp | –10°C to +70°C |
| Update Interval | 5 minutes (low-power mode) |

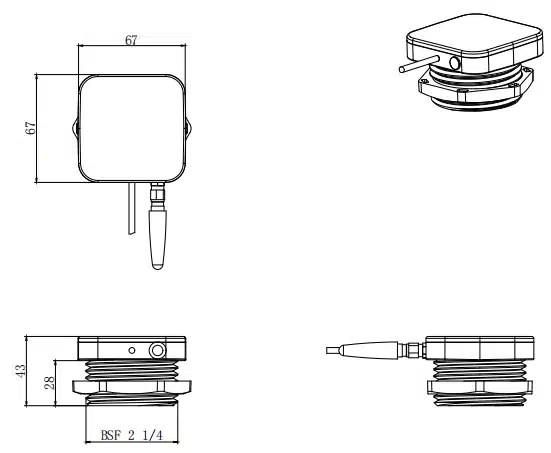

| Hole Size Required | Ø 58 mm |

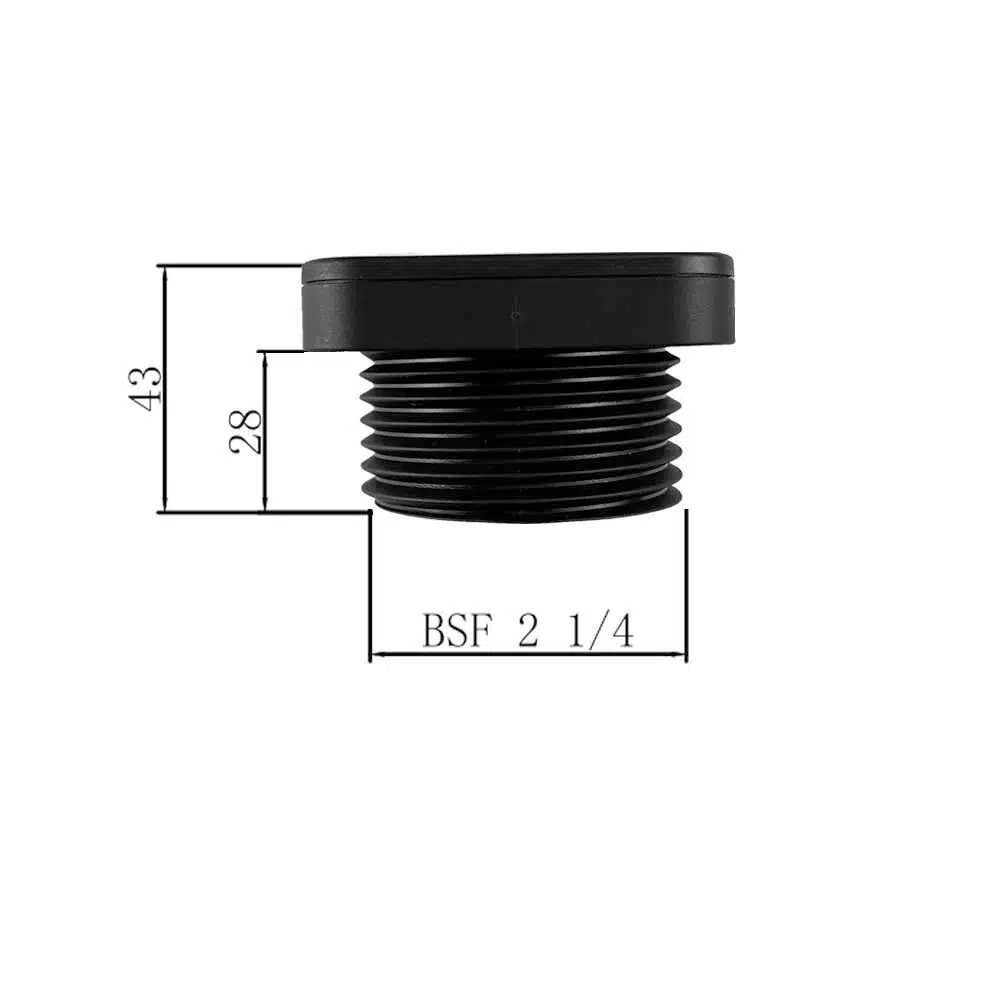

| Thread | BSF 2 1/4″ |
| Enclosure Size | 67 × 67 × 43 mm |
