CT Busbar Supports – Electrically Insulating Busbar Clamps and Braces

CT Busbar Isolators are electrically insulating busbar supports, clamps and braces that hold copper or aluminium busbars securely within an enclosure. Available as CJ-50, CT2-20, CT4-30, CT4-40, CT4-50 and CT5-25, they suit low, medium and high voltage switchgear assemblies.

Why Choose the Busbar Isolators

Busbars must be held firmly and kept at safe distances from each other and from the enclosure. Busbar Isolators provide that support while preventing electrical discharge.

Made from BMC and SMC moulding compounds, they perform in temperatures from -40 to 140 degrees Celsius.

Key Features of the Busbar Isolators

Electrical Insulation

Prevents discharge between busbars and enclosure.

Wide Temperature Range

-40 to 140 degrees Celsius.

Several Models

CJ-50, CT2-20, CT4-30, CT4-40, CT4-50, CT5-25.

Technical Highlights

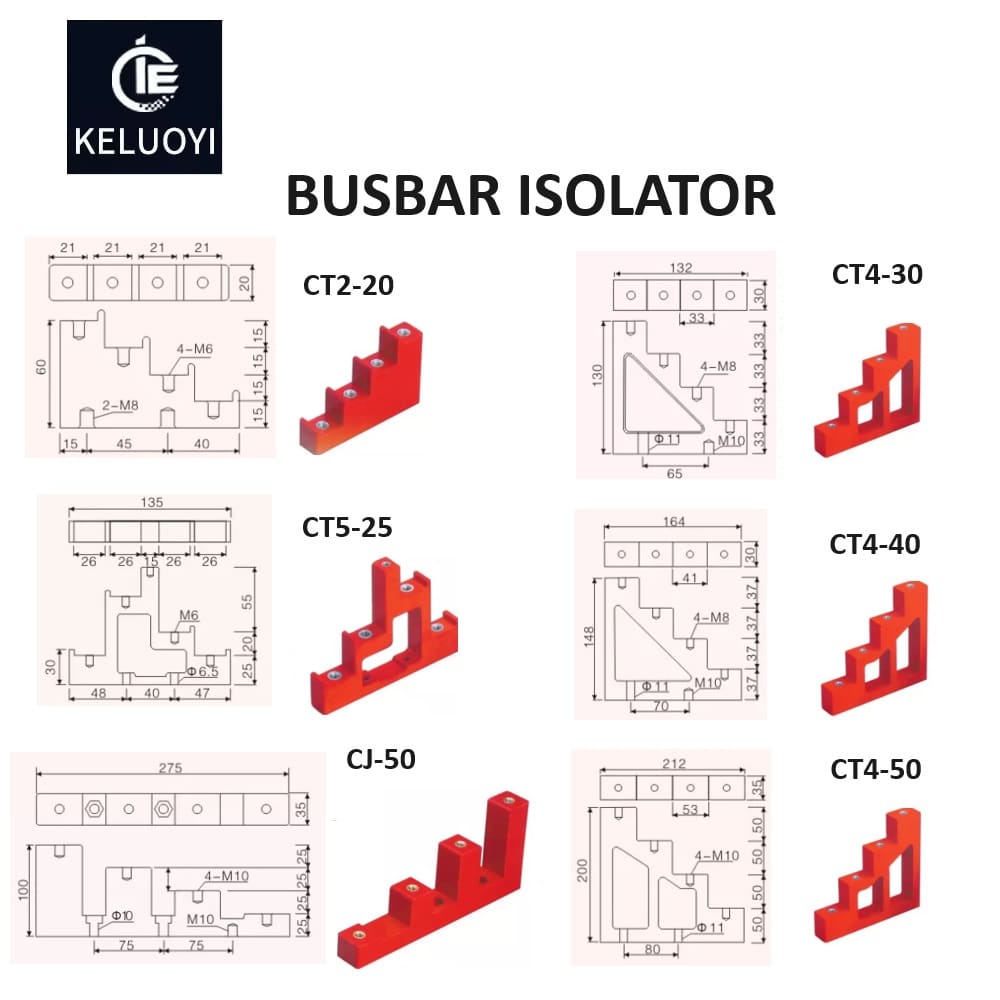

• Models: CJ-50, CT2-20, CT4-30, CT4-40, CT4-50, CT5-25
• Material: BMC / SMC moulding compound
• Temperature range: -40 to 140°C
• Use: LV, MV and HV switchgear and control gear

Where to Use the Busbar Isolators

• Switchgear: main busbar support.
• Distribution boards: neutral and earth bars.
• Control panels: secure busbar mounting.
• Industrial enclosures: reliable insulation.

Installation and Setup Tips

Only trained operators should use hydraulic busbar tools. Check hoses, fittings and oil level before each session, never exceed rated pressure and keep hands clear of dies and blades. Release pressure before changing dies or disconnecting hoses, and wear safety glasses and gloves during operation.

Related Products at WeVolt

Complete your busbar workshop. Compare them with the SM busbar supports, shape bars with the CB-150D busbar bending tool, and cut them with the CWC-200V busbar cutting machine. You can also browse all busbar isolators at WeVolt. Learn more about busbars.

How to Choose Busbar Processing Equipment

Busbar work usually involves three operations: cutting, punching and bending. Check the maximum width and thickness of the bars you use, and choose tools with enough force for copper and aluminium at those sizes. Decide on the power source, an electric pump for workshop volumes or a pedal pump for portable site work, and make sure hoses, connectors and valves are compatible across tools. Keeping spare dies, blades and seals avoids downtime.

Maintenance and Care

Use the recommended hydraulic oil, keep couplings clean and capped when disconnected, and inspect hoses for wear or leaks. Clean dies and blades after use, replace worn parts early and follow the service intervals in the manual. Good maintenance keeps hydraulic tools safe and precise for years.

Setting Up an Efficient Busbar Workshop

Arrange cutting, punching and bending stations in sequence so bars move smoothly from stock to finished part. One electric pump can serve several tools through quick connectors, while a pedal pump is useful for site work. Keep dies, blades and seals organised by size to reduce setup time.

Why Precise Busbar Fabrication Matters

Clean cuts, accurate holes and correct bends make busbar joints fit perfectly, which keeps contact resistance low and prevents hot spots in switchboards. Professional hydraulic tools deliver this precision repeatedly, improving both safety and panel build quality.

Why Buy from WeVolt

WeVolt supplies smart home, lighting control and electrical products to homeowners, electricians, panel builders and integrators. We select brands with proven reliability, keep technical information clear and help you choose compatible devices for each project. Whether you need a single unit or a full installation, our team can advise on wiring, app setup and system design so your project runs smoothly from order to handover.

Frequently Asked Questions

Which models of Busbar Isolators are available?

CJ-50, CT2-20, CT4-30, CT4-40, CT4-50 and CT5-25.

What temperature range do they withstand?

-40 to 140 degrees Celsius.

What are they made of?

BMC and SMC moulding compounds.

Can WeVolt help me choose the right product?

Yes. Our technical team can check compatibility with your installation, recommend accessories and answer wiring or app setup questions before and after your purchase.

Order CT Busbar Isolators from WeVolt for safe, secure busbar installations.
