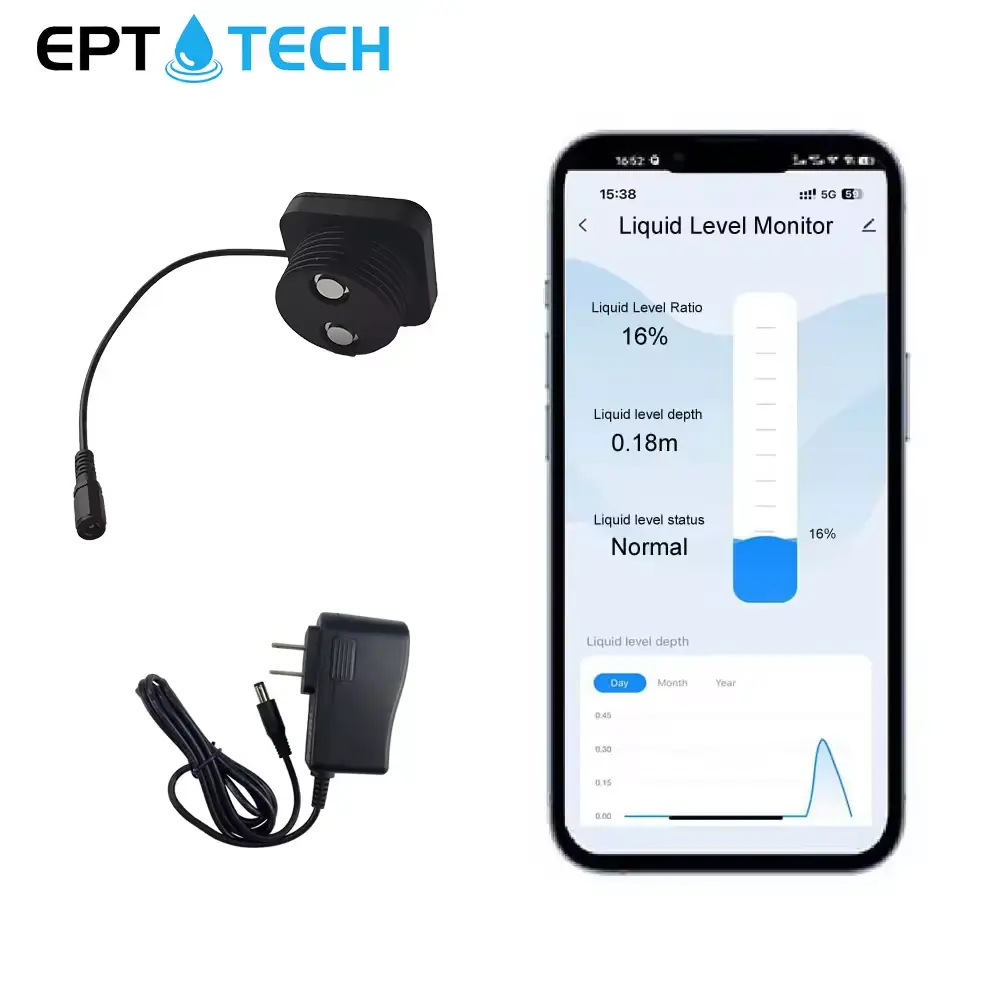

💧 EPT-TLC2326 WiFi Smart Water Level Sensor
The EPT-TLC2326 is an advanced WiFi-based ultrasonic liquid level monitor, designed for real-time tank level detection and smart automation. It uses non-contact ultrasonic technology to measure water depth with high precision, making it ideal for home, agriculture, and industrial applications.
📡 Key Features
-
📶 WiFi Connectivity (2.4 GHz): Works seamlessly with the Tuya Smart or Smart Life app
-

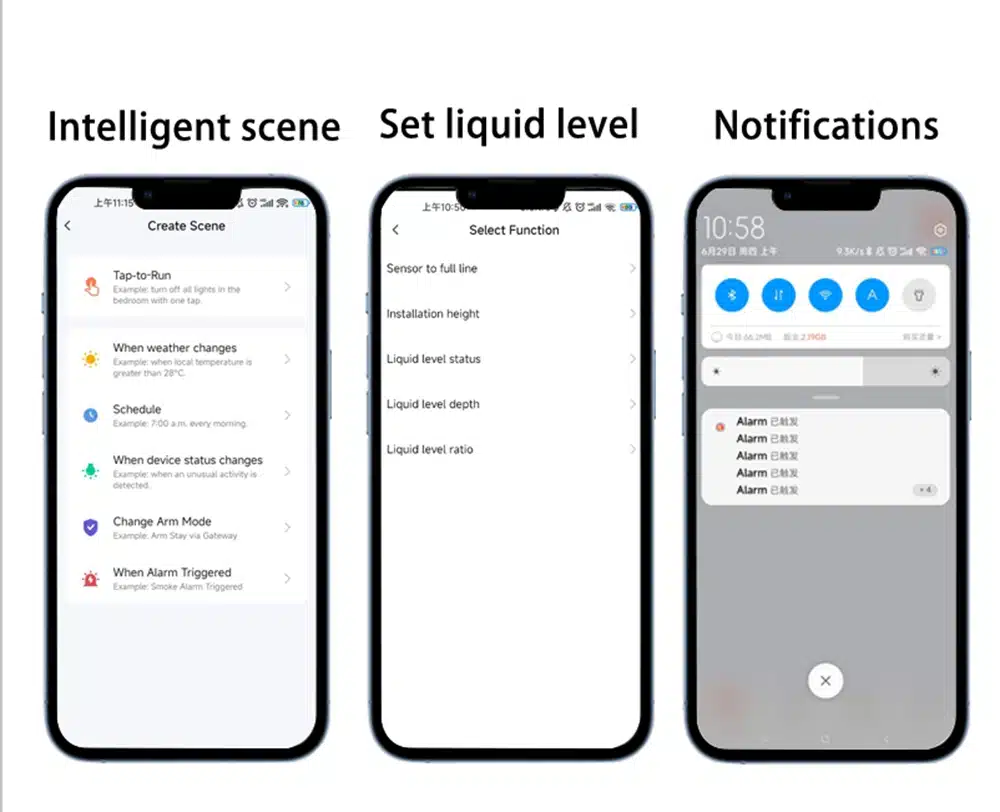

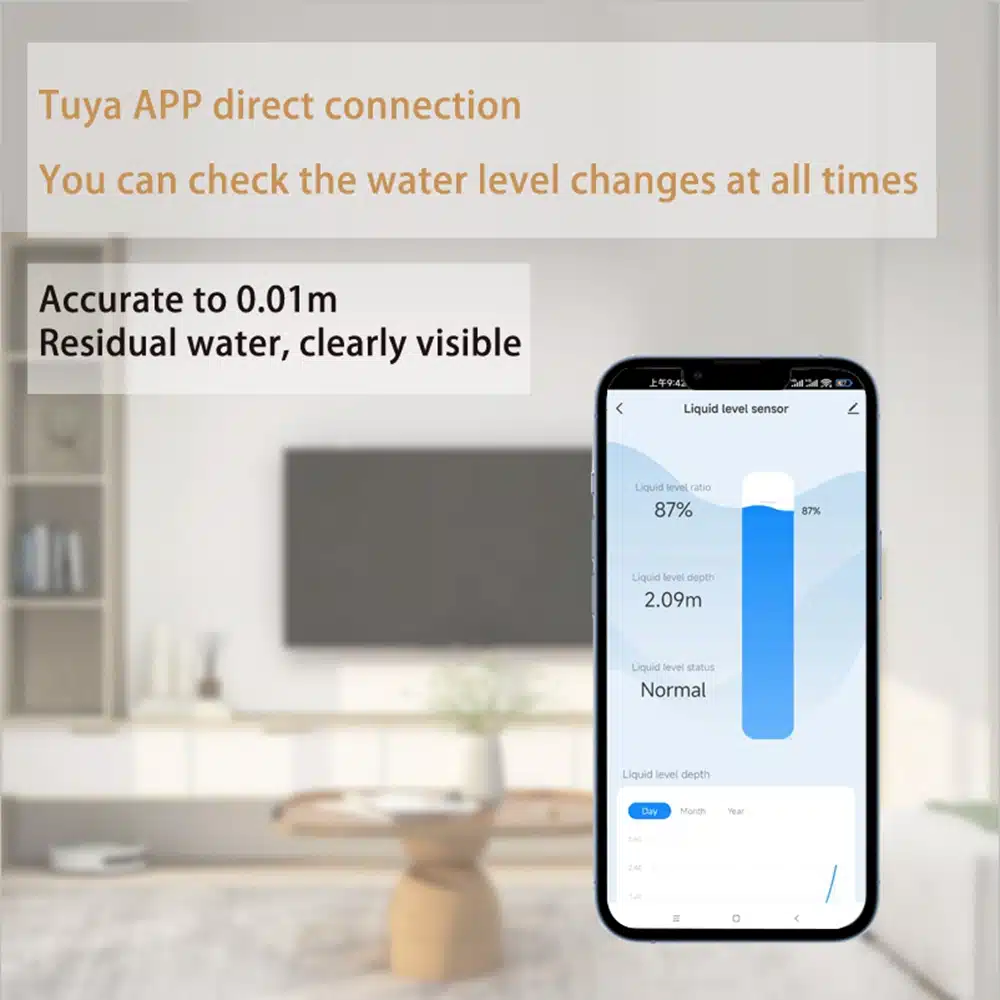

📲 App Monitoring: View real-time tank depth, level ratio, and history on your smartphone
-
🌡️ Non-Contact Measurement: Ultrasonic sensing means no physical contact with water
-
📈 Measurement Range: 10 cm to 2.9 m with ±(1% reading + 10 mm) accuracy
-
💧 IP67 Waterproof Rating: Fully sealed for rooftop or outdoor tank installation
-
🚨 High/Low Alerts: Custom threshold alarms via app notification
-
🔧 Easy Installation: Vertical mount with included 5V DC adapter
-
🧠 Smart Scenes: Create automation rules like pump activation or valve shutoff
🏠 Applications
-

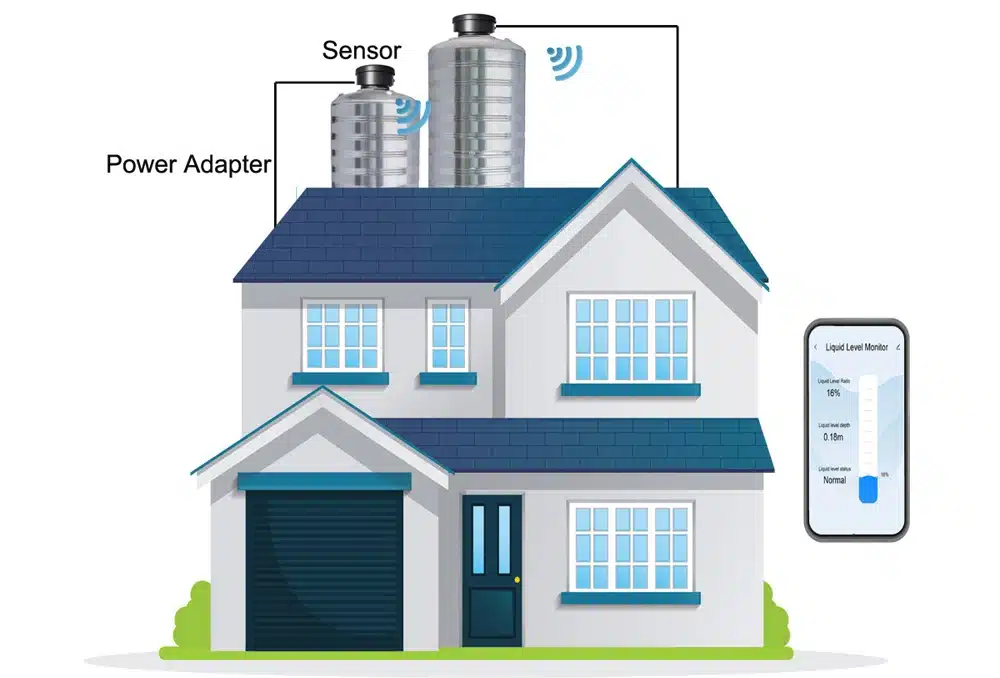

Home Tanks – Rooftop, underground, and well tanks
-
Agriculture – Irrigation tanks and water storage
-
Industry – Monitoring chemical, diesel, or liquid storage
-
Hospitality – Water tank and supply chain automation
📐 Technical Specifications
| Feature | Value |
|---|---|
| Measurement Type | Ultrasonic (non-contact) |
| Range | 10 cm – 2.9 m |
| Accuracy | ±(1% + 10 mm) |
| Communication | WiFi 2.4 GHz |
| App Support | Tuya Smart, Smart Life |
| Power Supply | 5V 2A DC adapter |
| Operating Temp | –10 °C to +70 °C |
| Protection Level | IP67 |
| Mounting | Vertical |
| Update Rate | ≥200 ms |
